Solve your irrigation system wiring problems with the

MuxPuck wiring system.

The MuxPuck wiring system makes it possible to control all of your irrigation zones over a single pair of wires.

An innovative solution to some common wiring problems and limitations in residential irrigation systems.

Overview

The MuxPuck wiring system consists of

HEAD PUCK

The head puck is installed at your existing irrigation controller. A single head puck can wire into up to 8 zones of your controller and you retain all of the smart functionality that your controller offers.

TAIL PUCK

The tail puck is installed in your valve box, and can control up to 8 individual valves.

THE 2 WIRE SOLUTION

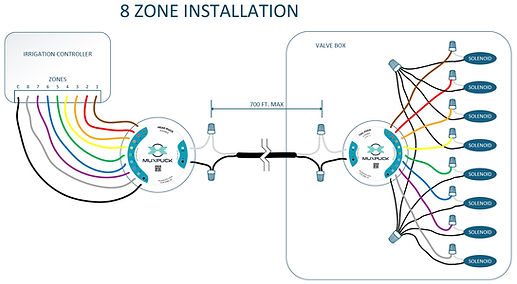

The head puck connects to the tail puck with a single pair of wires. One head puck can even control multiple tail pucks, allowing many different configurations. This systems allows you to control all of your valves with a single pair of wires rather than needing a dedicated wire for each valve.

See Applications

NEED TO ADD VALVES BUT SHORT ON WIRES? NOT A PROBLEM.

______________________

Adding zones to an existing irrigation system can present challenges. Don't let wiring constraints derail your plans.

Many expansion plans are hampered by the daunting task of trenching in additional wires between the controller and the valve box because there aren't spare wires available to control the additional valves.

With MuxPuck, as long as you've got 2 wires between your controller and your valve box, you'll have full control over up to 8 valves without sacrificing any of the functionality of your controller.

HAVE A BROKEN SPRINKLER WIRE AND NO SPARES? NO WORRIES.

______________________

Having a wire go bad between your controller and your valve box can be a major headache.

Locating and repairing the broken wire can be costly and time consuming.

Trenching in new wire can be a major undertaking and is a big disturbance to your landscaping.

Alternate solutions like battery-operated Bluetooth controllers force you to give up the smart functionality of your controller.

As long as you've still got 2 good wires between your controller and valve box, the MuxPuck system allows you to control up to 8 zones over 2 wires.

Why MuxPuck?

Features and Specifications

Compatible with any sprinkler controller that drives 24VAC solenoids.

Can source up to 1A per channel.

12" 18AWG marine rated flying leads for each zone.

Completely waterproof.

LED indicates zone in operation.

Can run up to 700 ft. of wire between pucks. Any direct burial wire such as generic landscaping wire can be used, potentially saving hundreds of dollars over multi-core sprinkler wire.

Allows you to use all zones on your controller without giving up any of its smart functionality.

Retain full power to each solenoid rather than sacrificing half of the power like other diode-based solutions.
